DENTAL X-RAY > YOSHIDA

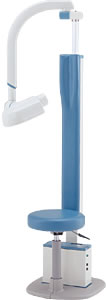

DENT NAVI
New features responding to digitalization. Smooth operation in both digital and film radiography.




Specifications

Type                                 XD33
High pressure generator     direct current
X-ray tube                        D-0711SB
X-ray tube focus                 0.7X0.7mm
Tube voltage                     60-70kV
Tube current                      4mA, 7mA
Exposure time                   0.01-3.2seconds
Total filtration                   over 2.1.. aluminum equivalent
Inside diameter of cone     54mm
Distance between focus and
the tip of radiation tube     200mm
Power requirements           AC100V 50/60Hz
Power consumption            1.2kVA
Weight                             40kg
Vertical stroke of head        650mm
Height of head                   865-1515mm
Vertical stroke of chair        200mm
Height of chair                   437-637mm
